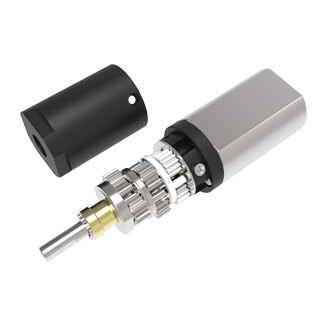

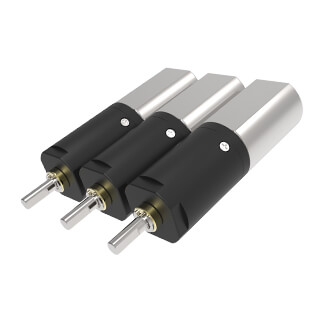

10MM减速齿轮箱

10MM减速齿轮箱

产品分类： 10MM减速齿轮箱
外径：10mm
材质：塑料
旋转方向：cc&ccw
齿轮箱回程差：≤3°
轴承：烧结轴承;滚动轴承
轴向窜动：≤0.3mm(烧结轴承); ≤0.2mm(滚动轴承)
输出轴径向负载：≤1N(烧结轴承); ≤7N(滚动轴承)
工作温度：-20……+85℃

欢迎订购：+86-17875427185

在线咨询

Gearbox Specifications:

Outer diameter	10mm
Material	Plastic
Direction of rotation	cc&ccw
Gear backlash	≤3°
Bearing	Porous Bearing	Rolling bearing
Axial endplay	≤0.3mm	≤0.2mm
Radial loading on output shaft	≤1N	≤7N
Operating temperature range	-20……+85℃

Gearbox stages:	1	2	3	4
Reduction Ratio	4/6	13/19/28	46/69/102/151	168/249/368/546/809
Max Rated Torque （gf.cm max）	600	600	600	850
Max Instant Torque （gf.cm max）	1200	1200	1200	1700
Gearbox efficiency	85	73	65	58
Length	9.7	12.8	15.9	19

Motor specifications:

Motors(Optional)	DC brush motor， DC brushless motor， Stepper motor
Voltage(Optional)	3-24V
Input speed	≤30000rpm
Current	150MA max

Performance Data:

Model	Rated Speed	Max Speed	Max Rated Torque	Max Instant Torque	Reduction Ratio	Length(L1)	Overall Length(L)
Model	rpm	rpm	gf.cm	gf.cm	Reduction Ratio	mm	mm
ME-G-10-4	1875	7500	600	1200	4	9.7	24.7
ME-G-10-6	1250	5000	600	1200	6	9.7	24.7
ME-G-10-13	577	2308	600	1200	13	12.8	27.8
ME-G-10-19	395	1579	600	1200	19
ME-G-10-28	268	1071	600	1200	28
ME-G-10-46	163	652	600	1200	46	15.9	30.9
ME-G-10-69	109	435	600	1200	69
ME-G-10-102	74	294	600	1200	102
ME-G-10-151	50	199	600	1200	151
ME-G-10-168	45	179	850	1700	168	19	34
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-249	30	120	850	1700	249
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-249	30	120	850	1700	249
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-249	30	120	850	1700	249
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-249	30	120	850	1700	249
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-368	20	82	850	1700	368
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-249	30	120	850	1700	249
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-249	30	120	850	1700	249
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-168	45	179	850	1700	168			19	34
ME-G-10-249	30	120	850	1700	249
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-249	30	120	850	1700	249
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-368	20	82	850	1700	368
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809
ME-G-10-546	14	55	850	1700	546
ME-G-10-809	9	37	850	1700	809

* above specifications are subject to change without notice, just for reference and customizable according to requirements.
