Product category: Total BLDC motors of Hengdrive
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs
欢迎订购：+86-17875427185
|
|
ME-B-3840 |
Outer Rotor |
Output Power: 2W~25W |
Weight: 150g (Approx.) |
|
Directly Drive Brushless DC Motor (DD BLDC) -Typical Application（In development） Automotive parts: Laser Radar Scanner Industry Facility: Satellite Antenna Direct Drive Rotation Gimbals Others: Direct Drive Rotation PTZ(pan-tilt-zoom) |
||||
|
Model |
Voltage(V) |
No Load |
Rated Load |
Stall |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
ME-B-3840 |
36-48 |
36 |
505 |
0.09 |
176 |
365 |
0.53 |
6.73 |
634 |
2.5 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |

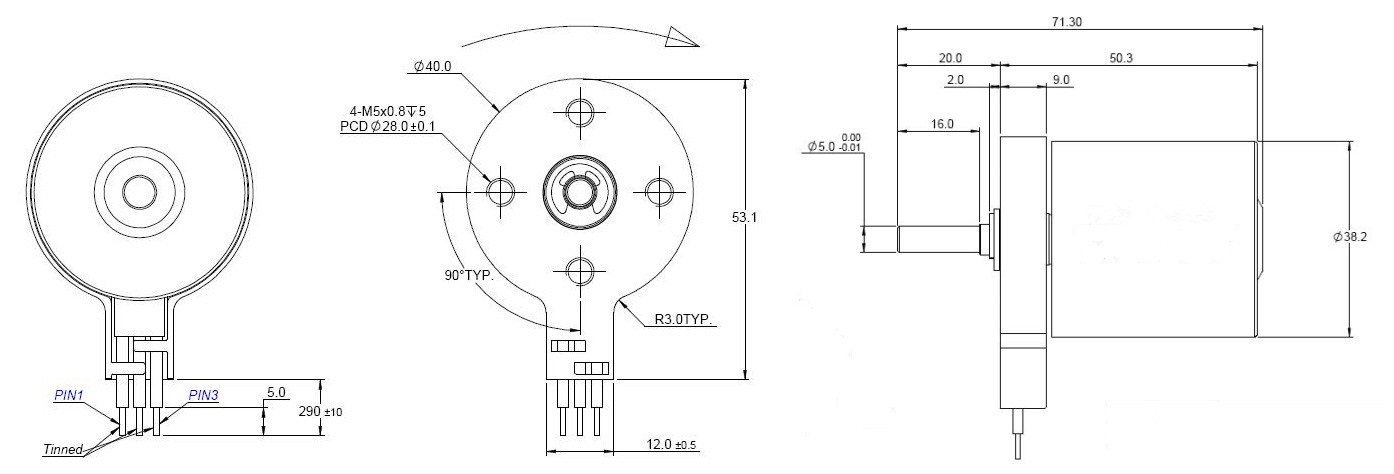

Outline Drawing:
Unit: Millimeter

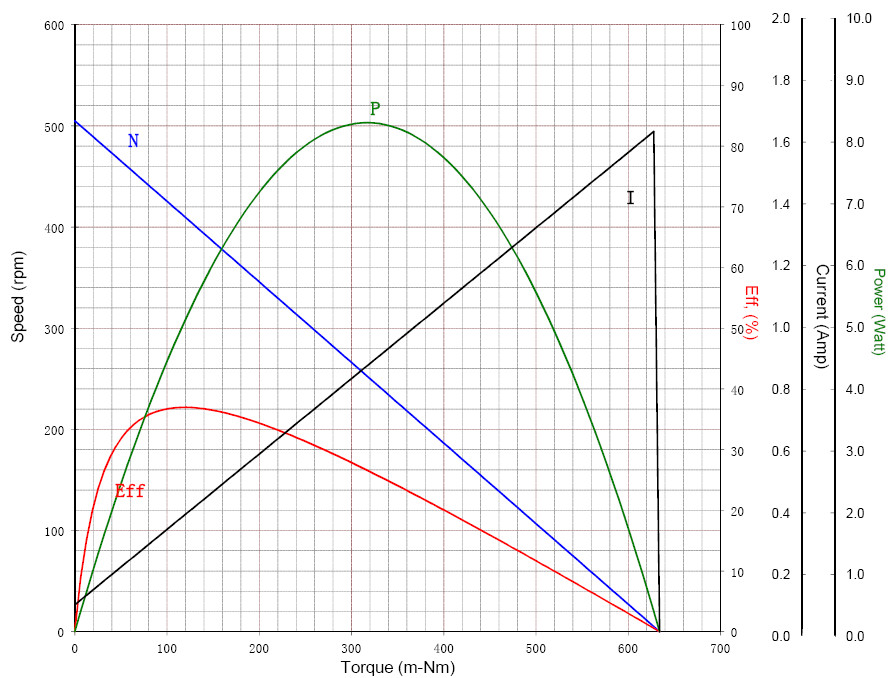

Performance Curve:
|
ME-B-3840 36V |
