Product category: Total BLDC motors of Hengdrive
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs
欢迎订购：+86-17875427185
|
|

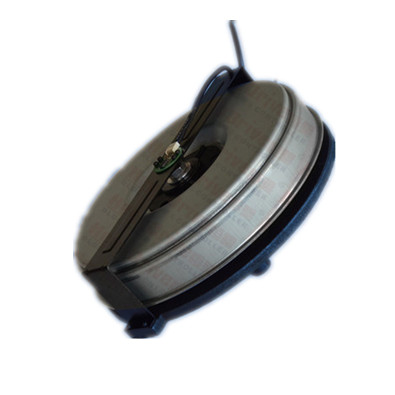

ME-B-D293 |
Outer Rotor |
Output Power: 100W~3000W |
Weight: (Approx.) 15kg |
|
Directly Drive Brushless DC Motor (DD BLDC)-Typical Application Marine Propeller Underwater Vehicle Propeller DD Motor for Wash Machine Ultra-low Speed & High Torque Running Equipment |
||||
|
Model |
Voltage(V) |
No Load |
Rated Load |
Stall |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (Nm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (Nm) |
Current (A) |
|
|
ME-B-D293-01 |
AC180-260 |
AC220V |
89 |
0.09 |
19 |
60 |
0.79 |
120 |
59 |
2.5 |
|
ME-B-D293-02 |
AC180-260 |
AC220V |
302 |
0.27 |
23 |
184 |
3.07 |
442 |
58 |
2.5 |
|
ME-B-D293-03 |
AC180-260 |
AC220V |
669 |
0.64 |
19 |
507 |
6.21 |
1041 |
80 |
8.0 |
|
ME-B-D293-04 |
DC310 |
DC310 |
2503 |
1.78 |
16 |
2021 |
13.24 |
3388 |
83 |
30 |
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |
Characteristic: High Efficiency, CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low EMI, Long life 10000-30000hrs
Outline Drawing:
|
Unit: Millimeter |
Performance Curve:
|
ME-B-D293-01 AC220V |
ME- B-D293-04 DC310V |
