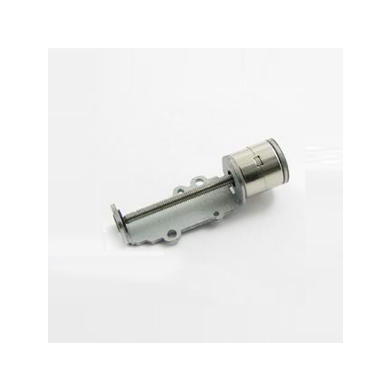

ME-S-0808

Typical Applications:

Camcorder, Digital Video, Camera, Security monitoring

Motor Parameter:
Step angel:                                     18°
Voltage:                                         4.8V
Resistance:                                    35Ω
Phase:                                            2-2
Drive mode:                                  Bipolar
Max.starting frequency:              800pps
Max.slew speed:                        1000pps
Holding torque:                               4.8
Pinion module:                                 0.3
Pinion PCD:                                    Φ2.7
Number of pinion teeth:                    9
Size of motor outer diameter:         8mm

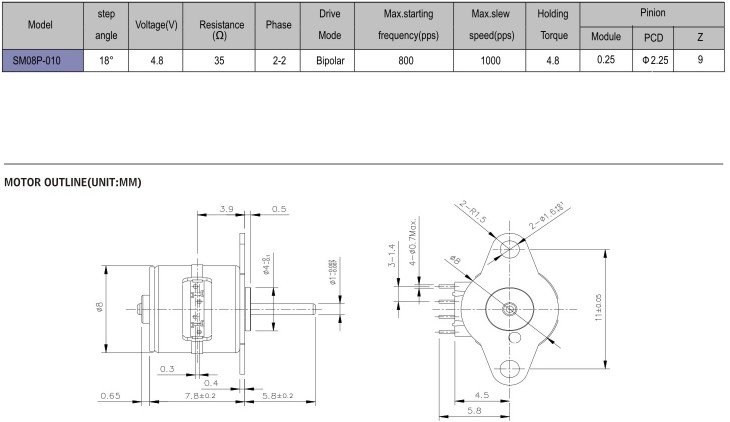

Outline and installation dimension drawing:
