Product category: Total BLDC motors of Hengdrive
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, life span 1200hrs
Orders Are Welcome：+86-17875427185
|
|
ME-B-2738 |
Output Power: 10W~130W |
Weight: 75g (Approx.) |
|

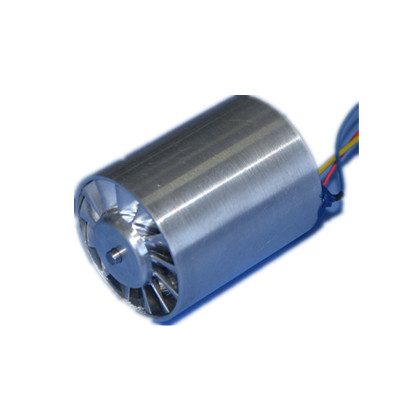

Ultra High Speed Brushless DC Motor--Typical Application Specialized for Hair Dryer & Vacuum Cleaner |
|||
|
Model |
Voltage(V) |
No Load |
Rated Load |
Stall |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
ME-B-2738-01 |
95-125 |
DC110 |
146430 |
0.33 |
7 |
110000 |
1.2 |
90.5 |
10.23 |
3 |
|
ME-B-2738-02 |
190-240 |
AC220 |
147033 |
0.12 |
7 |
110000 |
0.66 |
85.5 |
11.53 |
1.5 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, life span 1200hrs
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. |

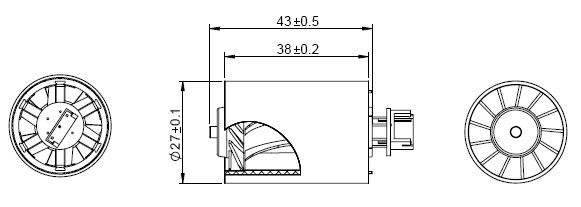

Outline Drawing:
|
Usable machine screw length 3.0mm max. from motor mounting surface |
Unit: Millimeter |
Performance Curve:
|

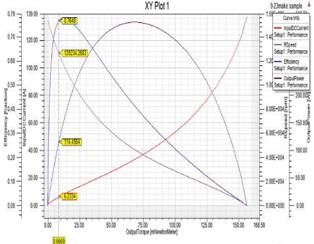

ME-B-2738-01 DC110V |

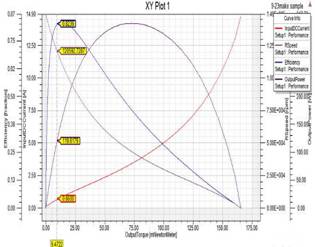

ME-B-2738-02 AC220V |
