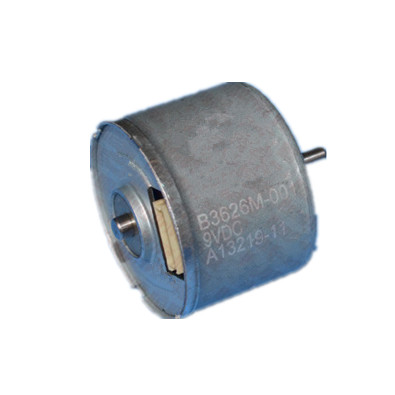

BLDC 3626

Product category: Total BLDC motors of Hengdrive

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

Orders Are Welcome：+86-17875427185

Online Advisory

Detail


ME-B-3626

Output Power: 1W~40W

Weight: 95g (Approx.)

Brushless DC Motor-Typical Application

Automotive Parts: Pump, Fan

Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Industry Equipment: Electric Valve, Actuator, Micro Pump

Personal Care: Hair Dryer, Electric Shaver, Massager

Model	Voltage(V)		No Load		Rated Load				Stall
Model	Operating Range	Rated	Speed (rpm)	Current (A)	Torque (mNm)	Speed (rpm)	Current (A)	Output P. (W)	Torque (mNm)	Current (A)
ME-B-3626-01	8-26	9	2720	0.12	13.73	985	0.57	1.42	21.51	2.5
ME-B-3626-02	8-26	12	4460	0.18	10.79	3750	0.57	4.23	66.74	2.5
ME-B-3626-03	8-26	24	5998	0.12	15	4858	0.50	7.63	78.91	2.5
ME-B-3626-04	8-26	24	11990	0.35	14.715	9420	0.996	14.52	63.79	2.5
ME-B-3626-05	8-26	24	39845	0.26	9.81	33327	1.78	34.24	58.99	3.0

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Outline Drawing:
