Product category: Brushless DC Gear Motor
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI
Orders Are Welcome：+86-17875427185
|
|

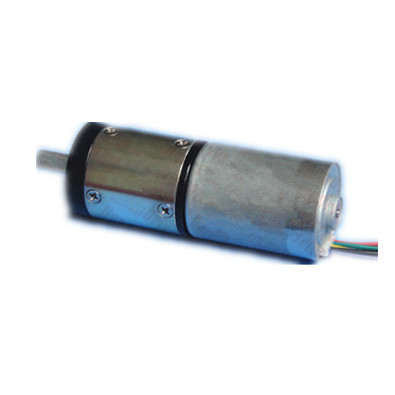

ME-B-2838 |
Output Power: 1W~14W |
Weight: 150g (Approx.) |
|
Brushless DC Gear Motor-Typical Application Home Application: Electric Window, Electric Curtain, Actuator, Small Appliances, Portable Equipment Industry Facility: Transmission Equipment, Gear System, Actuator Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor, Small Percussion Drill Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine Personal Care: Massager, Stroker, Vibrator |
|||
|
Model
|
Voltage(V) |
No Load |
Rated Load |
Stall |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (Nm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (Nm) |
Current (A) |
|
|
ME-B-2838-01 (Gear Ratio 5.2) |
8-26 |
12 |
176 |
0.26 |
0.612 |
104 |
1.34 |
8.34 |
1.03 |
2.5 |
|
ME-B-2838-02 (Gear Ratio 24) |
8-26 |
12 |
65 |
0.24 |
0.750 |
45 |
0.61 |
3.53 |
3.80 |
1.6 |
|
ME-B-2838-03 (Gear Ratio 51) |
8-26 |
12 |
145 |
0.23 |
0.816 |
104 |
1.54 |
7.14 |
1.21 |
2.5 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement. |

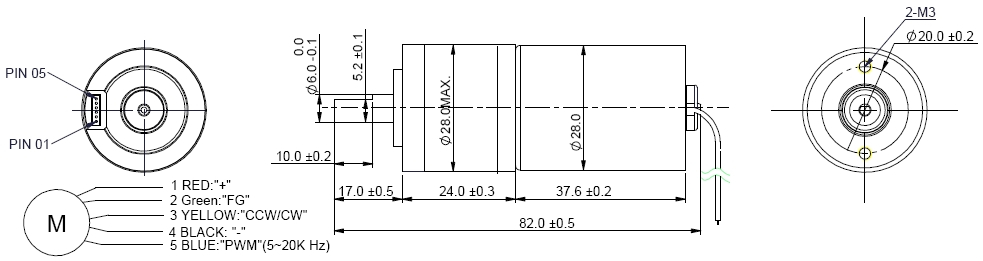

Outline Drawing:
|
Unit: Millimeter |

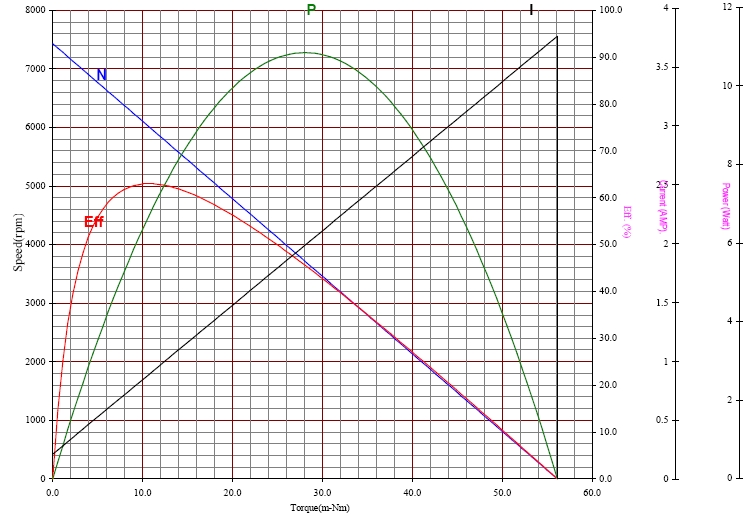

BLDC Motor Performance Curve:
|
ME-B-2838-01(Bare Motor) 12V |
ME-B-2838-03(Bare Motor) 12V |
