ME-C-0514

Typical Applications:

Electric toy and model,Automotive,Remedy apparatus,Personal care

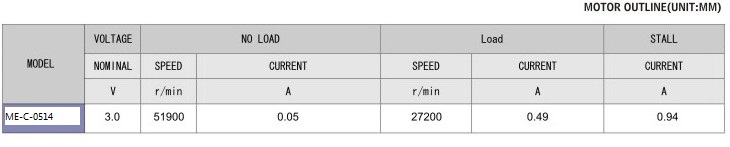

Motor Parameter:
Nominal voltage:          3.0V
No load speed:          51900r/min
No load current:           0.05A
Load speed:                0.49
Load current:            27200
Stall current:                0.94A
Housing diameter:           5mm
Housing Length:          14.2mm

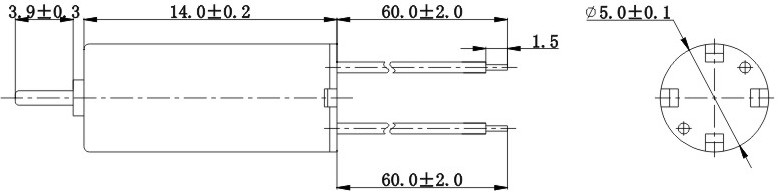

Outline and installation dimension drawing:
