ME-C-0412

Typical Applications:

Electric toy and model,Automotive,Remedy apparatus,Personal care

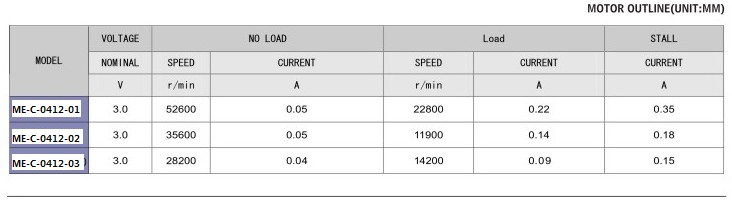

Motor Parameter:
Nominal voltage:           3.0V            3.0V            3.0V
No load speed:        52600r/min     35600r/min    28200r/min
No load current:           0.05A           0.05A           0.04A
Load speed:              22800r/min     11900r/min    14200r/min
Load current:             0.22A          0.14A        0.09A
Stall current:               0.35A         0.18A         0.15A
Housing diameter:          4mm
Housing Length:             12mm

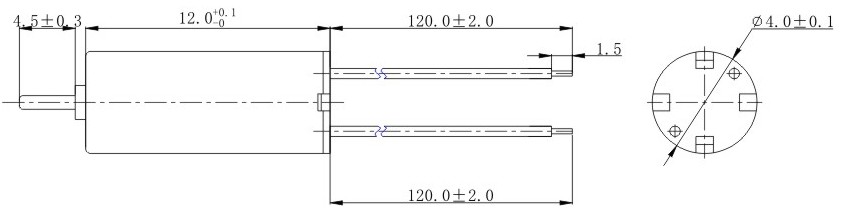

Outline and installation dimension drawing:
