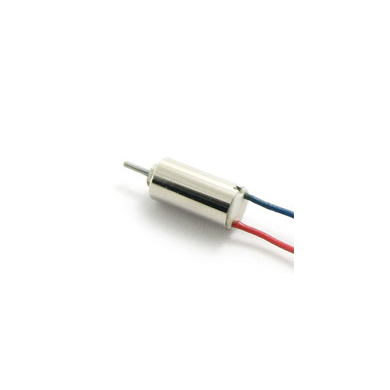

ME-C-0612

Typical Applications:

lectric toy and model,Automotive,Remedy apparatus,Personal care

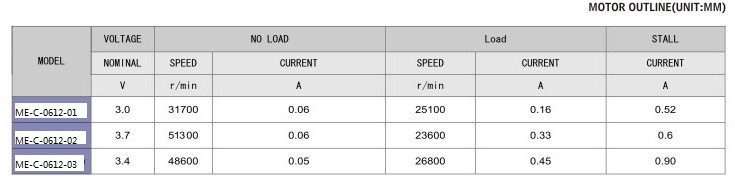

Motor Parameter:
Nominal voltage:          3.0V          3.7V          3.4V
No load speed:        31700r/min      53100r/min     48600r/min
No load current:         0.06A         0.06A         0.05A
Load speed:             25100r/min      23600r/min     26800r/min
Load current:             0.16A          0.33A        0.45A
Stall current:              0.52A          0.6A           0.9A
Housing diameter:         6mm
Housing Length:          12.2mm

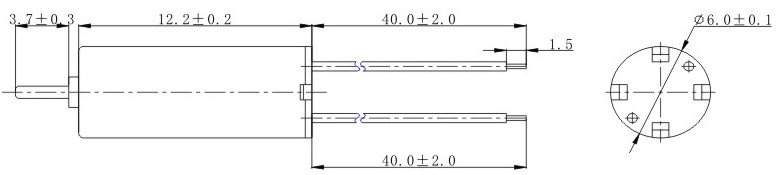

Outline and installation dimension drawing:
