ME-C-0720

Typical Applications:

Electric toy and model,Automotive,Remedy apparatus,Personal care

Motor Parameter:
Nominal voltage:          3.4V          3.4V
No load speed:          50100r/min     45000r/min
No load current:          0.2A          0.14A
Load speed:              35000r/min     31500r/min
Load current:               1.75A         1.55A
Stall current:                5.6A          5.2A
Housing diameter:         7mm
Housing Length:           20mm

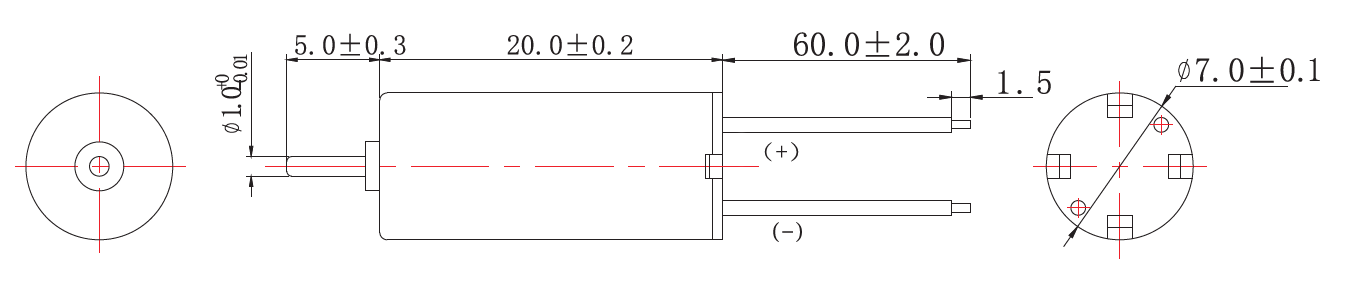

Outline and installation dimension drawing:
