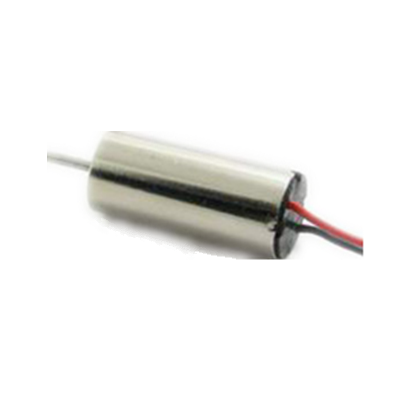

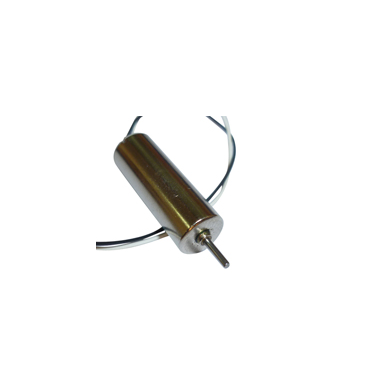

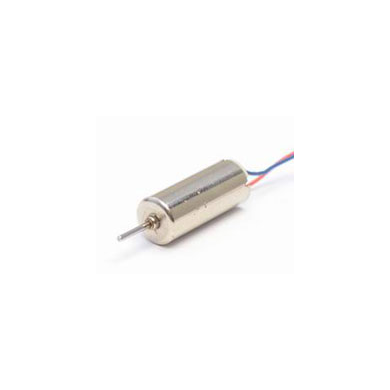

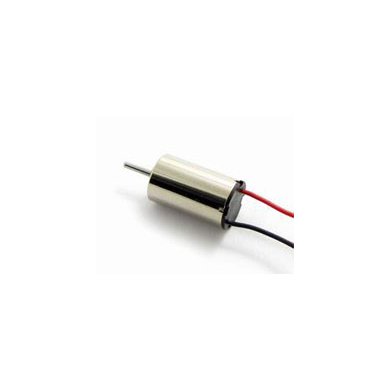

ME-C-0614

Typical Applications:

Electric toy and model,Automotive,Remedy apparatus,Personal care

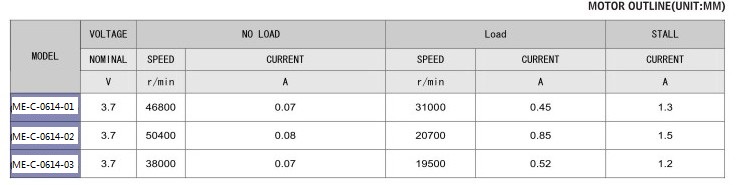

Motor Parameter:
Nominal voltage:          3.7V          3.7V          3.7V
No load speed:         46800r/min     50400r/min    38000r/min
No load current:         0.07A         0.08A         0.07A
Load speed:             31000r/min     20700r/min    19500r/min
Load current:             0.45A          0.85A        0.52A
Stall current:              1.3A            1.5A         1.2A
Housing diameter:         6mm
Housing Length:          14mm

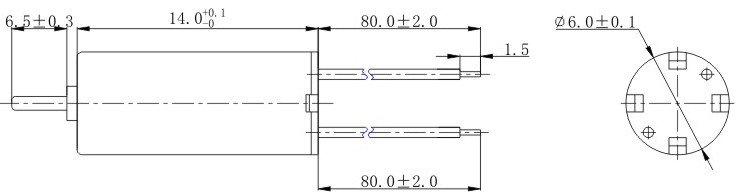

Outline and installation dimension drawing:
