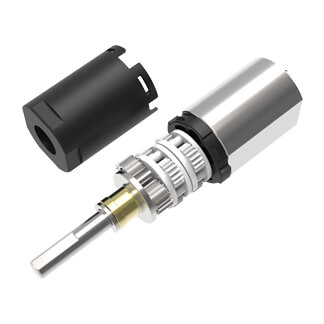

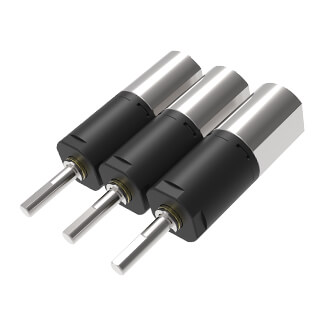

Planetary Gearbox Motor 12X

Model: ZWPD012012-XXX
1. Rated Voltage: 3-24 V
2. No Load Speed: 9-2923 rpm
3. No Load Current: 85-95 mA
4. Rated Load Speed: 8-2500 rpm
5. Rated Load Current: 130-135 mA
Please refer to the table below for detailed parameters

Orders Are Welcome：+86-17875427185

Online Advisory

Gearbox Specifications:

Outer diameter	12mm
Material	Plastic
Direction of rotation	cc&ccw
Gear backlash	≤3°
Bearing	Porous Bearing	Rolling bearing
Axial endplay	≤0.3mm	≤0.2mm
Radial loading on output shaft	≤5N	≤10N
Operating temperature range	-20……+85℃

Gearbox stages:	1	2	3	4
Reduction Ratio	4/6	16/24/36	64/96/144/216	256/384/576/864/1296
Max Rated Torque （gf.cm max）	1300	1300	1300	1300
Max Instant Torque （gf.cm max）	4000	4000	4000	4000
Gearbox efficiency	85	73	65	58
Length	9.5	13.3	17.1	20.9

Motor specifications:

Motor specifications
Motors(Optional)	DC brush motor， DC brushless motor， Stepper motor
Voltage(Optional)	3-24V
Input speed	≤30000rpm
Current	250MA max

Performance Data:

Model	Rated Speed	Max Speed	Max Rated Torque	Max Instant Torque	Reduction Ratio	Length(L1)	Overall Length(L)
Model	rpm	rpm	gf.cm	gf.cm	Reduction Ratio	mm	mm
ME-G-12-4	1875	7500	1300	4000	4	9.5	24.5
ME-G-12-6	1250	5000	1300	4000	6	9.5	24.5
ME-G-12-16	469	1875	1300	4000	16	13.3	28.3
ME-G-12-24	313	1250	1300	4000	24
ME-G-12-36	208	833	1300	4000	36
ME-G-12-64	117	469	1300	4000	64	17.1	32.1
ME-G-12-96	78	313	1300	4000	96
ME-G-12-144	52	208	1300	4000	144
ME-G-12-216	35	139	1300	4000	216
ME-G-12-256	29	117	1300	4000	256	20.9	35.9
ME-G-12-384	20	78	1300	4000	384
ME-G-12-576	13	52	1300	4000	576
ME-G-12-864	9	35	1300	4000	864
ME-G-12-1296	6	23	1300	4000	1296

* above specifications are subject to change without notice, just for reference and customizable according to requirements.
