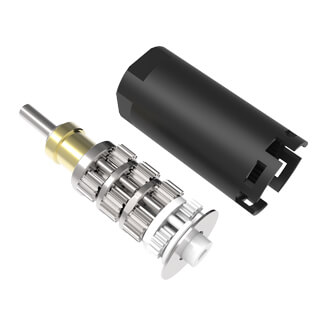

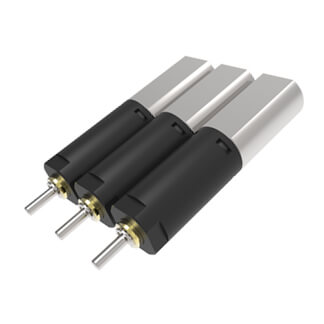

Planetary Gearbox Motor 8X

Model: ZWPD008008-XXX
1. Rated Voltage: 4.2v
2. No Load Speed: 17-4233 rpm
3. No Load Current: 90-100 mA
4. Rated Load Speed: 14-3111 rpm
5. Rated Load Current: 155-160 mA
Please refer to the table below for detailed parameters

Orders Are Welcome：+86-17875427185

Online Advisory

Gearbox Specifications:

Outer diameter	8mm
Material	Plastic
Direction of rotation	cc&ccw
Gear backlash	≤3°
Bearing	Porous Bearing	Rolling bearing
Axial endplay	≤0.3mm	≤0.2mm
Radial loading on output shaft	≤0.8N	≤5N
Operating temperature range	-20……+85℃

Gearbox stages:	1	2	3	4
Reduction Ratio	4/5	13/19/28	47/69/102/152	168/249/369/546/809
Max Rated Torque （gf.cm max）	50	100	200	400
Max Instant Torque （gf.cm max）	200	300	600	900
Gearbox efficiency	85	73	65	58
Length	8.6	11.3	14	16.7

Motor specifications:

Motors(Optional)	DC brush motor， DC brushless motor， Stepper motor
Voltage(Optional)	3-12V
Input speed	≤30000rpm
Current	150MA max

Performance Data:

Model	Rated Speed	Max Speed	Max Rated Torque	Max Instant Torque	Reduction Ratio	Length(L1)	Overall Length(L)
Model	rpm	rpm	gf.cm	gf.cm	Reduction Ratio	mm	mm
ME-G-8-4	2083	8333	50	200	3.6	8.6	23.1
ME-G-8-5	1406	5625	50	200	5.3	8.6	23.1
ME-G-8-13	579	2315	100	300	13.0	11.3	25.8
ME-G-8-19	391	1563	100	300	19.2
ME-G-8-28	264	1055	100	300	28.4
ME-G-8-47	161	643	200	600	46.7	14.0	28.5
ME-G-8-69	109	434	200	600	69.1
ME-G-8-102	73	293	200	600	102.4
ME-G-8-152	49	198	200	600	151.7
ME-G-8-168	45	179	400	900	168.0	16.7	31.2
ME-G-8-249	30	121	400	900	248.8
ME-G-8-369	20	81	400	900	368.6
ME-G-8-546	14	55	400	900	546.1
ME-G-8-809	9	37	400	900	809.1

* above specifications are subject to change without notice, just for reference and customizable according to requirements.
