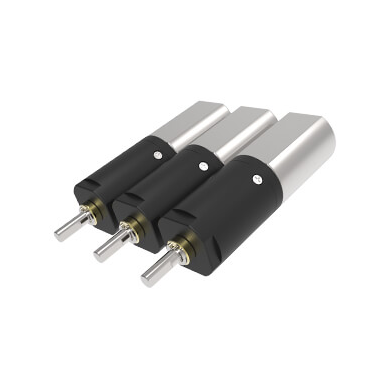

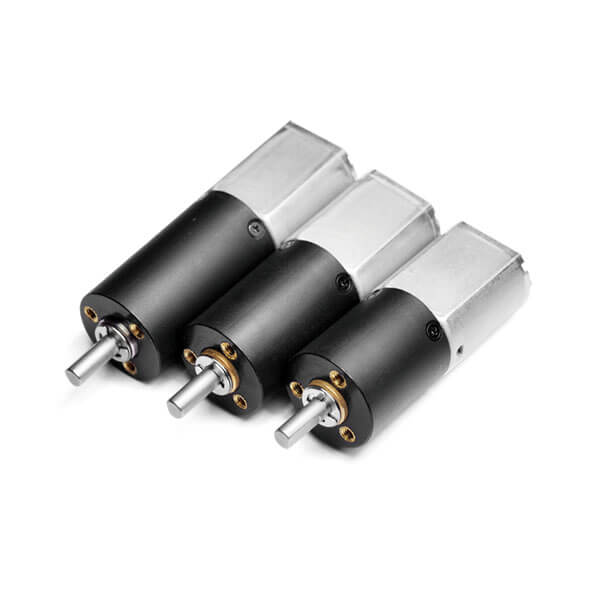

Planetary Gearbox Motor 20X

1. Rated Voltage: 3-24 V
2. No Load Speed: 5-1,636 rpm
3. No Load Current: 70-90 mA
4. Rated Load Speed: 4-1,420 rpm
5. Rated Load Current: 125-130 mA

Orders Are Welcome：+86-17875427185

Online Advisory

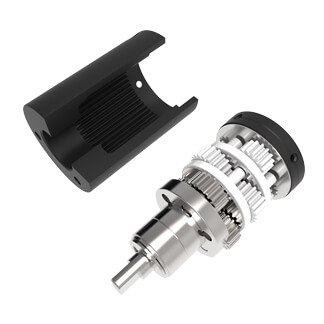

Gearbox Specifications:

Outer diameter	20mm
Material	Plastic
Direction of rotation	cc&ccw
Gear backlash	≤3° （Can be customize）
Bearing	Porous Bearing	Rolling bearing
Axial endplay	≤0.1mm	≤0.1mm
Radial loading on output shaft	≤30N	≤50N
Operating temperature range	-20……+85℃

Gearbox stages:	1	2	3	4
Reduction Ratio	4/6	16/24/36	64/96/144/216	256/384/576/864/1296
Max Rated Torque （gf.cm max）	6000	6000	6000	6000
Max Instant Torque （gf.cm max）	15000	15000	15000	15000
Gearbox efficiency	85	73	65	58
Length	17.6	22.9	28.2	33.5

Motor specifications:

Motors(Optional)	Coreless motor， brushless motor， Stepper motor
Voltage(Optional)	3-24V
Input speed	300MA max
Current	≤15000rpm

Performance Data:

Model	Rated Speed	Max Speed	Max Rated Torque	Max Instant Torque	Reduction Ratio	Length(L1)	Overall Length(L)
Model	rpm	rpm	gf.cm	gf.cm	Reduction Ratio	mm	mm
ME-G-20-4	1875	7500	6000	15000	4	17.6	42.7
ME-G-20-6	1250	5000	6000	15000	6	17.6	42.7
ME-G-20-16	469	1875	6000	15000	16	22.9	48
ME-G-20-24	313	1250	6000	15000	24
ME-G-20-36	208	833	6000	15000	36
ME-G-20-64	117	469	6000	15000	64	28.2	53.3
ME-G-20-96	78	313	6000	15000	96
ME-G-20-144	52	208	6000	15000	144
ME-G-20-216	35	139	6000	15000	216
ME-G-20-256	29	117	6000	15000	256	33.5	58.6
ME-G-20-384	20	78	6000	15000	384
ME-G-20-576	13	52	6000	15000	576
ME-G-20-864	9	35	6000	15000	864
ME-G-20-1296	6	23	6000	15000	1296

* above specifications are subject to change without notice, just for reference and customizable according to requirements.
