Product category: Total BLDC motors of Hengdrive
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
Orders Are Welcome：+86-17875427185
|
|

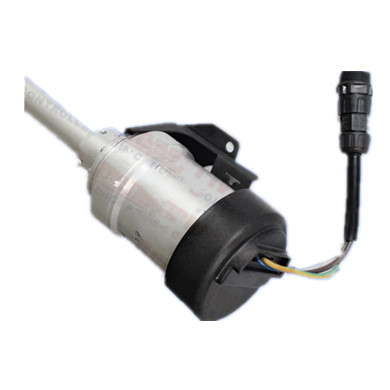

ME-B-D111 |
Output Power: 1000W~4600W |
Weight: 5.7Kg (Approx.) |
|
Directly Drive Brushless DC Motor (DD BLDC) -Typical Application Underwater Propeller, UAV Propeller, Motorboat Propeller, Small Surface Vessel Propeller Automotive Parts Industry Facility Power Plant Medical Equipment Power Plant Power Tool Application |
|||
|
Model |
Voltage(V) |
No Load |
Rated Load |
Stall |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (Nm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (Nm) |
Current (A) |
|
|
ME-B-D111-01 |
42-54 |
48 |
3607 |
9.40 |
8.0 |
2713 |
58.3 |
2275 |
32 |
85 |
|
ME-B-D111-02 |
42-54 |
48 |
7575 |
9.18 |
4.9 |
5949 |
84.8 |
3055 |
23 |
85 |
|
ME-B-D111-03 |
42-54 |
48 |
5171 |
7.00 |
11 |
3310 |
115 |
4080 |
46 |
150 |
|
Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement. |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

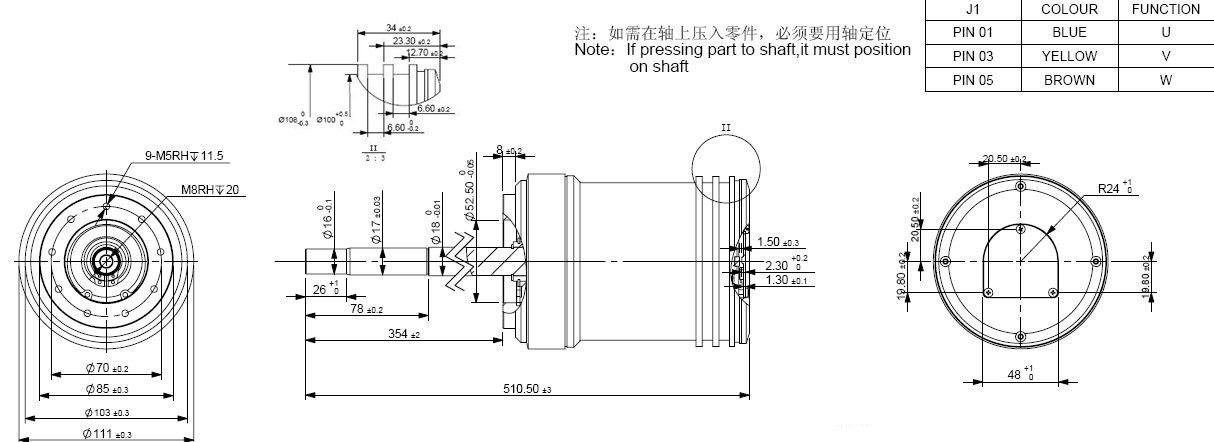

Outline Drawing:
|
Usable machine screw length 8.0mm max. from motor mounting surface
|
Unit: Millimeter |
Performance Curve:
|

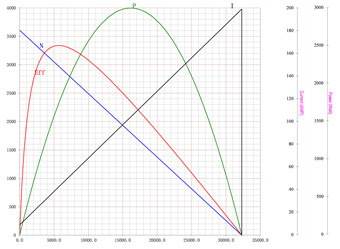

ME-B-D111-01 48V |

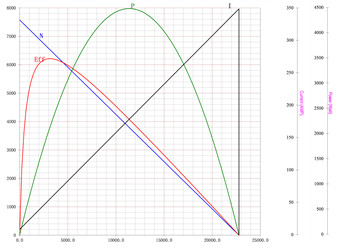

ME-B-D111-02 48V |
