ME-C-0408

Typical Applications:Electric toy and model,Automotive,Remedy apparatus,Personal care

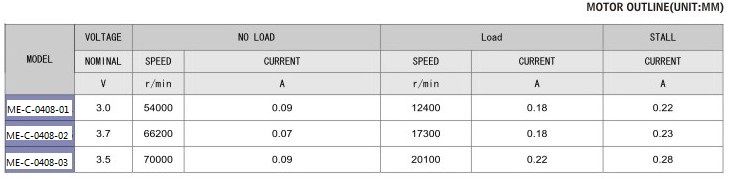

Motor Parameter:
Nominal voltage:           3.0V          3.7V          3.5V
No load speed:        54000r/min     66200r/min    70000r/min
No load current:           0.09A         0.07A         0.09A
Load speed:           12400r/min     17300r/min    20100r/min
Load current:                0.18A          0.18A        0.18A
Stall current:                 0.22A         0.23A         0.28A
Housing diameter:         4.1mm
Housing Length:            8.3mm

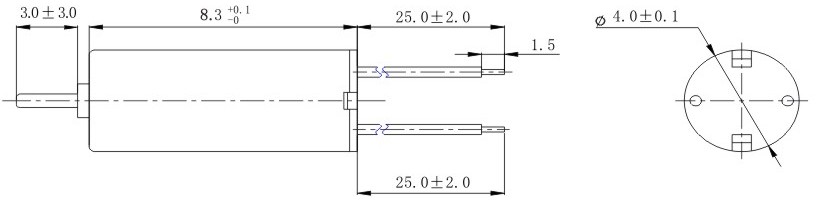

Outline and installation dimension drawing:
