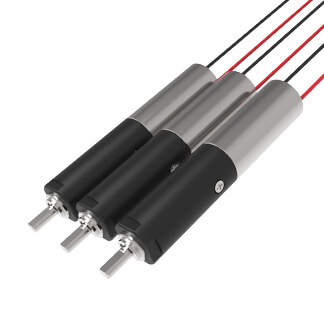

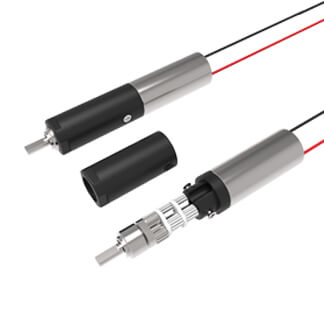

Planetary Gearbox Motor 6X
  • Planetary Gearbox Motor 6X
  • Planetary Gearbox Motor 6X
Planetary Gearbox Motor 6X

1. Rated Voltage: 3.0-6 V
2. No Load Speed: 11-3824 rpm
3. No Load Current: 40 mA
4. Rated Load Speed: 10-3229 rpm
5. Rated Load Current: 100 mA


Orders Are Welcome：+86-17875427185


Gearbox Specifications:

Outer diameter 6mm
Material Plastic
Direction of rotation cc&ccw
Gear backlash ≤3°
Bearing Porous Bearing Rolling bearing
Axial endplay ≤0.3mm ≤0.2mm
Radial loading on output shaft ≤0.3N ≤4N
Operating temperature range -20……+85℃



Gearbox stages: 1 2 3 4
Reduction Ratio 3/6 23/31/41 110/148/198/266 531/711/952/1275/1708
Max Rated Torque （gf.cm max） 250 250 250 250
Max Instant Torque （gf.cm max） 600 600 600 600
Gearbox efficiency 85 73 62 55
Length 9.7 12.1 14.5 16.9



Motor specifications:

Motor specifications
Motors(Optional) DC brush motor， Stepper motor,Coreless motor
Voltage(Optional) 3-12V
Input speed ≤30000rpm
Current 100MA max



Performance Data:

Model Rated Speed Max Speed Max Rated Torque Max Instant Torque Reduction Ratio  Length(L1) Overall Length(L)
rpm rpm gf.cm gf.cm mm mm
ME-G-6-5 1563 6250 250 600 4.8 9.7 23.7
ME-G-6-6 1166 4666 250 600 6.43
ME-G-6-23 326 1302 250 600 23.04 12.1 26.1
ME-G-6-31 243 972 250 600 30.86
ME-G-6-41 181 726 250 600 41.33
ME-G-6-110 68 271 250 600 110.6 14.5 28.5
ME-G-6-148 51 203 250 600 148.1
ME-G-6-198 38 151 250 600 198.4
ME-G-6-266 28 113 250 600 265.7
ME-G-6-531 14 57 250 600 530.8 16.9 30.9
ME-G-6-711 11 42 250 600 711.0
ME-G-6-952 8 32 250 600 952.2
ME-G-6-1275 6 24 250 600 1275.2
ME-G-6-1708 4 18 250 600 1707.9

* above specifications are subject to change without notice, just for reference and customizable according to requirements.
